CPU

Intel? Atom? x5-E3930 processor Intel? Core? i3-7100U 2.4 GHz

RAM

4GB DDR3L

Storage

M.2 64GB SSD

Interfaces

I/O

1x USB 2.0, type A, OCP, 1000 mA 1x USB 3.0, type A, OCP, 1600 mA

1x HDMI

1x GbE, RJ-45, 4kV isolated, supports WOL

1x RS-232/422/485, 4kV isolated

1x Speaker 1x Mic-in

Optional User Interface (only for 15.6")

7 Illuminated keys on the front glass the following functions:

-Standby ON/OFF

-Touch cleaning enable/disable -Panel brightness increase

-Panel brightness decrease

-Display keyboard ON/OFF

-2 x customizable function keys

Optional Indicator (only for 15.6")

LED status bar

Power

9~36V DC (external medical grade PSU)

Display & Touch

LCD

13.3” /15.6“ Full HD 1920x1080

Luminance

360 cd/m2 / 270 cd/m2

View Angle(V/H)

178°/178°

TouchScreen

Multi-point PCAP

Mechanical

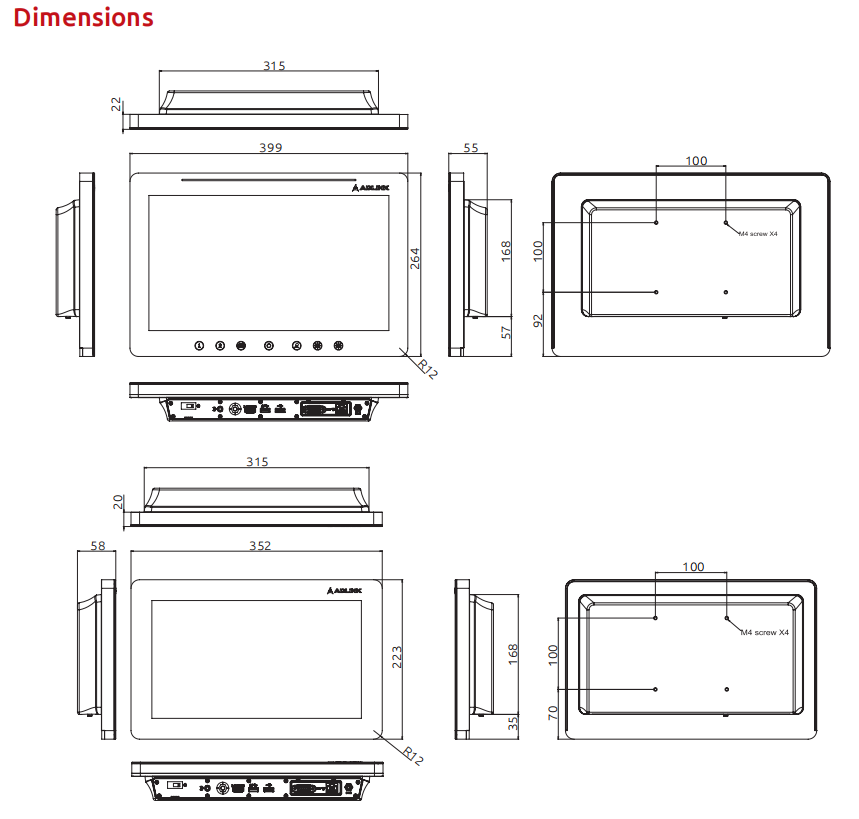

Dimensions (WxHxD)

MLC-133: 352x224x57 mm MLC-156: 399x263x71 mm

Weight

MLC-133: 3.2 kg MLC-156: 4.3 kg

Housing

Aluminum powder-coated, anti-bacterial

Mounting

VESA 100x100

Environmental

Operating

0°C to 35°C

5?90% RH, non-condensing

Storage

-20°C to 60°C

5?90% RH, non-condensing

Certificates

IEC 60601-1:2012 & EN 60601-1:2013 (Safety ed. 3.1)

IEC 60601-1-2:2014 & EN 60601-1-2:2015 (EMC 4thed.)

MLC-133-AL

13.3" Full HD Display with multitouch, Intel Atom? x5-E3930, 4GB RAM, 64GB SSD

MLC-133-KL

13.3" Full HD Display with multitouch, Intel? Core? i3-dual core, 4GB RAM, 64GB SSD

MLC-156-AL

15.6" Full HD Display with multitouch, Intel Atom? x5-E3930, 4GB RAM, 64GB SSD

MLC-156-KL

15.6" Full HD Display with multitouch, Intel? Core? i3-dual core, 4GB RAM, 64GB SSD

DDR3L-8

8GB RAM

SSD-128

M.2 SATA SSD 128GB

SSD-256

M.2 SATA SSD 256GB

Medical grade power adapter

Medical grade power adapter, 65W AC input: 100-240V, 47-63Hz

Operating System

Windows? 10 IoT Enterprise x64 bit

User Interface  (only for 15.6")

Illuminated Front Touch Buttons

Indicator

(only for 15.6")

LED status bar
