Features

■   Supports a 32-bit 5 V PCI bus (PCI-7230/7233/7234/7234P)

■   Supports a 32-bit 3.3 V or 5 V PCI bus (LPCI-7230)

■   x1 lane PCI Express Interface (LPCIe-7230)

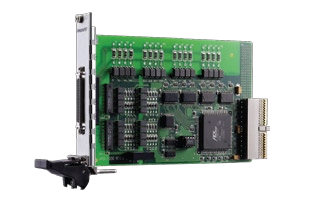

■   3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1) (cPCI-7230)

■   16-CH isolated digital inputs &  16-CH isolated digital  outputs (PCI-7230/LPCI-7230/LPCIe-7230/cPCI-7230)

■   32-CH isolated digital inputs (PCI-7233)

■   32-CH isolated digital outputs (PCI-7234/7234P)

■   5000 VRMS optical isolation (PCI-7230 & PCI-7233/cPCI-7230)

■   2500 VRMS optical isolation (PCI-7234/7234P/LPCI-7230/ LPCIe-7230)

■   Sink current up to 500 mA on single isolated output

■   Two external interrupt sources (PCI-7230/LPCI-7230/ LPCIe-7230/cPCI-7230)

■   Change-of-state interrupt sources (PCI-7233)

■   Compact, low-profile PCI/PCI Express® size PCB (LPCI-7230/LPCIe-7230)

■   Operating Systems

• Windows 7/Vista/XP/2000/2003 Server

• Linux

■ Recommended Software

• AD-Logger

• VB.NET/VC.NET/VB/VC++/BCB/Delphi

• DAQBench

■ Driver Support

• DAQPilot for LabVIEW™

• DAQ-MTLB for MATLAB®

• PCIS-DASK for Windows

• PCIS-DASK/Xfor Linux

Introduction

ADLINK's PCI/LPCI/LPCIe/cPCI-723X series are 32-CH isolated input and/or output cards which provide a 2,500 V

optical isolation protection. The wide input range of the PCI/cPCI/LPCI/LPCIe-7230 and PCI-7233 makes it easy to

sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The PCI/cPCI/LPCI/LPCIe-7230 and PCI-7234 devices also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The PCI-7234P provides current-source output capability.

The PCI/cPCI/LPCI/LPCIe-7230 and PCI-7233 also provide two interrupt sources on digital input channels. The PCI-7233 also features a change-of-state (COS) function that generates an interrupt when any digital input changes its state.

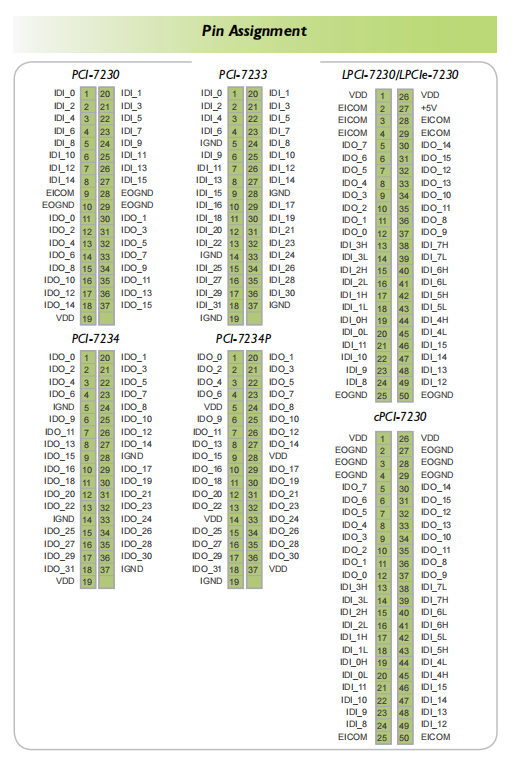

Terminal Boards & Cables

PCI-7230/7233/7234/7234P:

■ DIN-37D-01

Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included.)

■ ACLD-9137-01

General-Purpose Terminal Board with One 37-pin D-sub Male Connector

■ ACL-10137-1MM

37-pin D-sub male/male cable, 1 M

LPCI-7230/LPCIe-7230/cPCI-7230:

■ DIN-50S-01

Terminal Board with One 50-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included.)

■ ACL-10250-1

50-pin SCSI-II cable (mating with AMP-787082-5), 1 M

*  For more information on mating cables, please refer to P2-61/62.

Ordering Information

■ PCI-7230

16-CH Isolated DI & 16-CH Isolated DO Card

■ PCI-7233

32-CH Isolated DI Card with inversed input logic

■ PCI-7234

32-CH Isolated DO Card

■ PCI-7234P

32-CH Isolated DO Card with Source Current  Transistor

■ LPCI-7230

16-CH Isolated DI & 16-CH Isolated DO Low-Profile  PCI Card

■ LPCIe-7230

16-CH Isolated DI & 16-CH Isolated DO Low-Profile   PCI Express® Card

■ cPCI-7230

16-CH Isolated DI & 16-CH Isolated DO Module

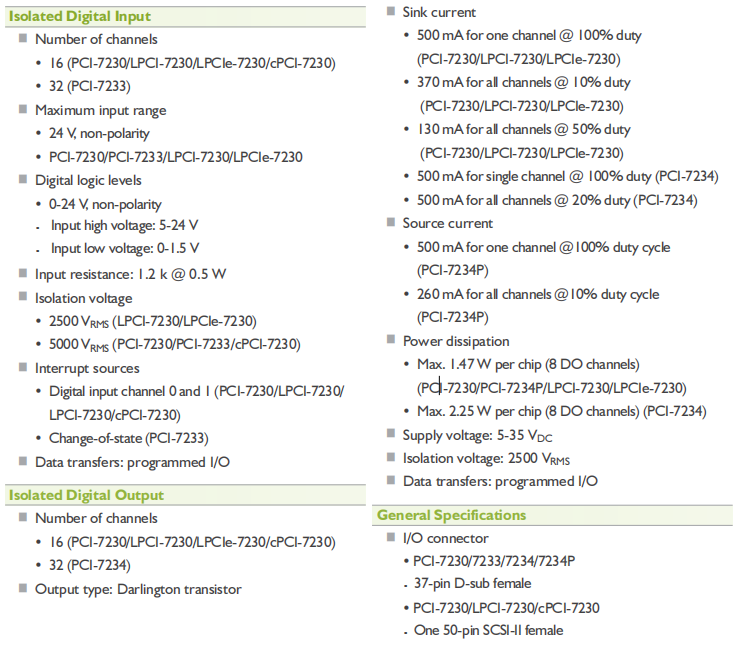

Specifications

■  Operating temperature: 0°C to 60°C

■  Storage temperature: -20°C to 80°C

■  Relative humidity: 5% to 95%, non-condensing

■  Power requirements

■ Dimensions (not including connectors)

? 153 mm X 107 mm (PCI-7230)

? 158 mm X 107 mm (PCI-7233)

? 175 mm X 107 mm (PCI-7234 & PCI-7234P)

? 120 mm X 65 mm (LPCI-7230)

? 119.9 mm(L) x 68.9 mm(H) (LPCIe-7230)

? 160 mm x 100 mm (cPCI-7230)
