RK-609MB 价格: 编号:RK-609MB

在线询价
详细内容 规格参数 产品包装

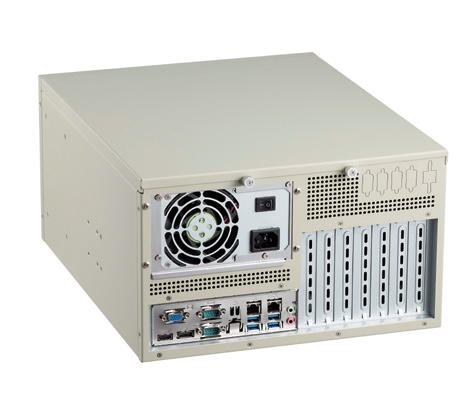

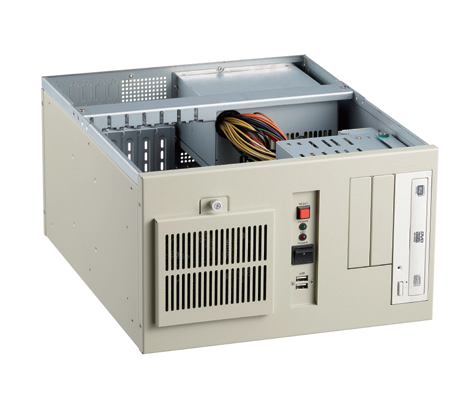

Quiet Safety Wallmount Industrial Chassis Supports ATX Industrial Motherboard

Features

• Supports Mini-ITX, microATX, ATX industrial motherboards

• One 5.25”, two 3.5” external drive bays and one internal 3.5"  or 2.5" drive bay

• Two USB type A connectors on front panel

• Low noise 12cm PWM controlled (Full Loading 45db) • PS2 ATX power supply




Ordering Information

Model Number

Color

Description

RK-609MB

Beige

Wallmount industrial chassis without wallmount kit

RK-609MB-M

Beige

Wallmount Industrial Chassis with wallmount kit

Power Supply Options

Model Number

Watt

Output (Max.)



Input Range

+3.3 V

+5 V

+12 V1

+12 V2

+12 V3

+12 V4

-12 V

+5 Vsb

-5 V

APS930XA-ATX12

300W

Unversal

19 A

16 A

17 A

17 A

N/A

N/A

0.3 A

2.5 A

0.3 A

APS940XA-EPS12

400W

Unversal

19 A

16 A

17 A

17 A

N/A

N/A

0.3 A

2.5 A

0.3 A

APS950XA-EPS12

500W

Unversal

19 A

16 A

17 A

17 A

N/A

N/A

0.3 A

2.5 A

0.3 A

APS960XA-EPS12

600W

Unversal

25 A

25 A

16 A

16 A

16 A

16 A

0.5 A

4.0 A

0.5 A

Specifications

Model

RK-609MB

Dimensions

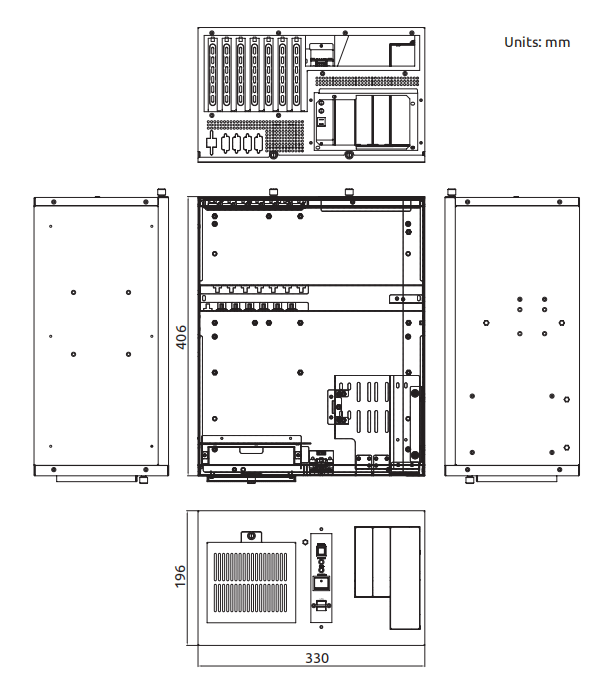

13 in x 7.7 in x 16 in (330 mm x 196 mm x 406 mm) (W x H x D)

Drive Bays

One 5.25”, two 3.5” external drive bays and one internal 3.5” drive bays

Color

Beige

Cooling Fans

One 120mm x 120mm x 25mm PWM two ball bearing PWM Fan (103 CFM)

System fan speed would change refer to chassis thermal sensor, or CPU temperature

Front Panel

LEDs: HDD active and system power


System reset switch and ATX power switch


Two USB type A connectors

Motherboard

Mini-ITX, microATX, or ATX industrial motherboard

Power Supply

PS2 form factor ATX power supply

Carton Size

535 mm x 340 mm x 460 mm (21.8 in x 13.4 in x 18.1 in) (W x H x D)

Weight

7.1 kg (15.6 lbs)
