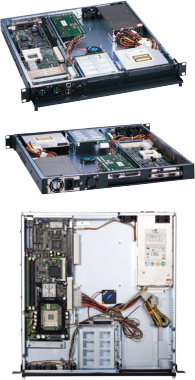

1U Rack Mounted Industrial Chassis supports 3-slot Backplane

Features

• 1U height, 17.7 inch (450 mm) short depth

• One slim FDD & one slim-type optical drive bay

• One rear PCI expansionslot, integrated 300 W power supply • Supports PICMG 1.3 backplane

Backplane Option

Model

Number

PICMG? SBC

PCI

PCIe x4

PSU Connector

EBP-D3E1

ATX

Ordering Information

Model Number

Color

Description

RK-110SE-B

Black

1U rackmount industrial chassis supports

EBP-D3E1

Power Supply Options

Specifications

Model	RK-110SE-B

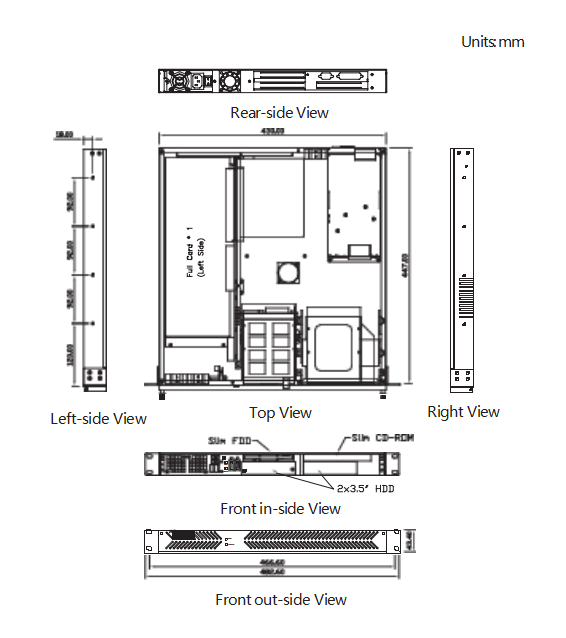

Dimensions	19 in x 1.75 in x 17.7 in (483 mm x 44 mm x 450 mm) (W x H x D)
Drive Bays	One 5.25”bay for slim-type optical drive and 3.5”HDD One 3.5”bay for slim-type FDD
Construction	Heavy-duty steel
Color	Black
Cooling Fans	Three 4 cm ball bearing fans, 7.0 CFM each, two front and one rear
Front Panel	Easy-to-customize front door LEDs: HDD activity, system power System reset switch, ATX power switch Two USB 1.1/2.0 connectors, PS/2 keyboard connector
Rear Panel	Two I/O cutouts available
Carton Size	23.4 in x 6 in x 22.8 in (594 mm x 152 mm x 578 mm) (W x H x D)
Weight	Net 12 kg (26.4 lb)
