Multiplexer/Simultaneous
Multi-Function Data Acquisition Card
Features
• PCI Express bus
• High-density design to integrate AI/AO/DI/DO functions in one card
• High accuracy with up to 16-bit resolution A/Dand D/A
• Supports a wide, programmable voltage input range of ±10V, ±5V, ±2.5V, ±1.25V, ±0.625V, ±0.3125V
• Up to 2-channel encoder for simple motion control, supporting CW/CCW, x1/x2/x4 AB phase encoder
• Direct memory access channels offload CPU utilization
• Fully automated calibration
• Board ID switch
• Easy to use utility/SDK simplifies design effort
• PM (Pattern Match) function realtime reflective actions by comparing pattern of digital input or encoder
Introduction

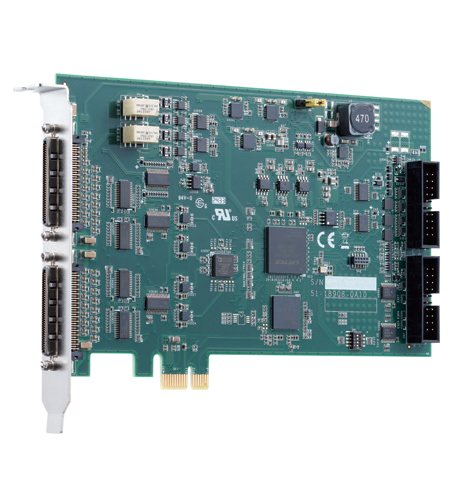

The PCIe-9100 series are multi-function data acquisition cards with a PCI Express interface for industrial applications. Their high sample rate, high resolution, and high-density I/O design allow customers easily integrate multiple functions in one card for various applications, such as data logging, process control, and condition monitoring.
Software Support
• Operating Systems
Windows 7/10/11 x86/x64 or later, Linux
• Driver and SDK
LabVIEW, C/C++, Visual Basic, Visual Studio.NET
• Software Utility
ACE, Soft-Front Panel

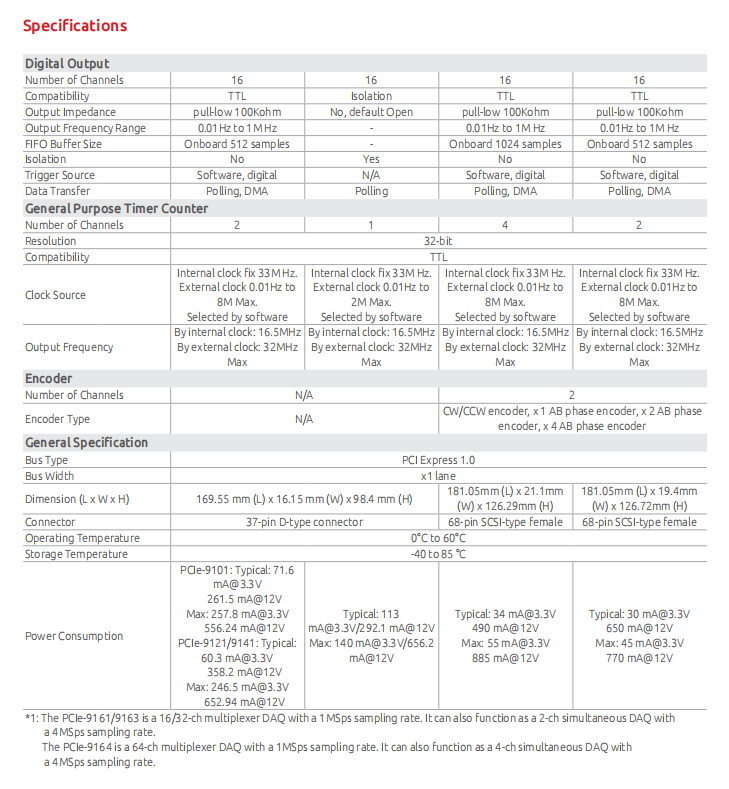

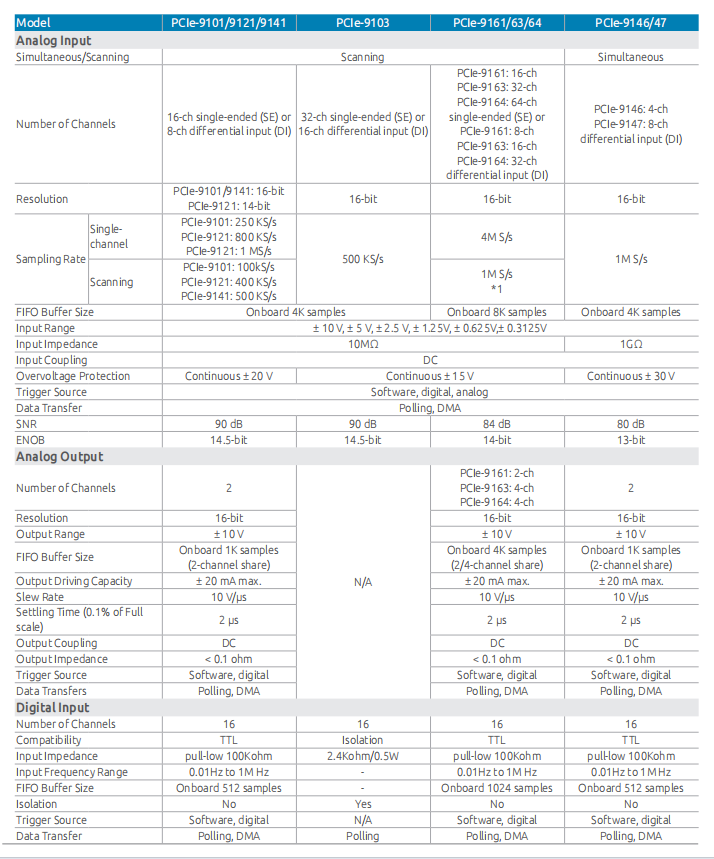

Ordering Information
Multiplexer DAQ
• PCIe-9101
16-ch 16-bit 250KS/s Multifunction DAQ
• PCIe-9121
16-ch 14-bit 800KS/s Multifunction DAQ
• PCIe-9141
16-ch 16-bit 1MS/s Multifunction DAQ

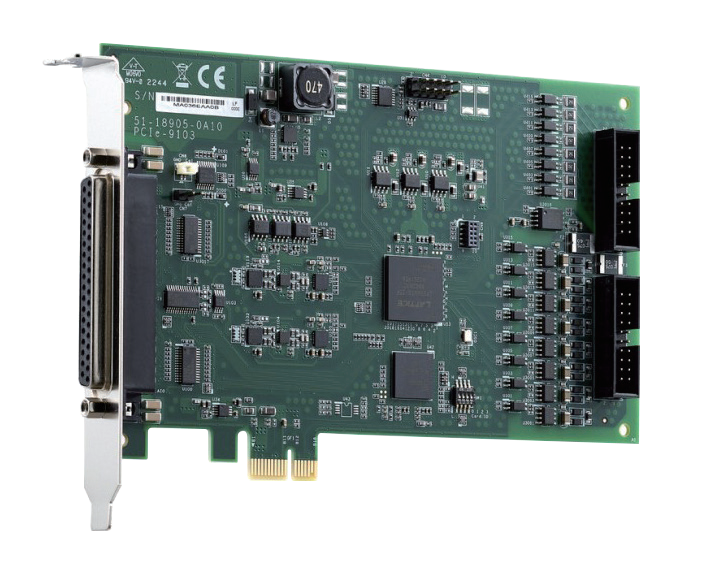

• PCIe-9103
32-ch 16-bit 500KS/s Multifunction DAQ
• PCIe-9161
16-ch 16-bit 4MS/s multifunction DAQ
• PCIe-9163
32-ch 16-bit 4MS/s multifunction DAQ
• PCIe-9164
64-ch 16-bit 4MS/s multifunction DAQ
Simultaneous DAQ
• PCIe-9146
4-ch 16-bit 1MS/s simultaneous multifunction DAQ
• PCIe-9147
8-ch 16-bit 1MS/s simultaneous multifunction DAQ
Terminal Boards & Cables
• DIN-68S-01
68-pin SCSI-II terminal board with DIN-rail mounting (cables not included)
• ACL-10568-1
SCSI 68P(M) to VHDCI 68P cable, 1M
Terminal Boards & Cables
• DIN-37D-01
Terminal board with one 37-pin D-sub connector and DIN-rail mounting (cables not included)
• DIN-68S-01
68-pin SCSI-II Termination board with DIN-Rail Mounting
(Cables are not included.)
• ACL-10137-1MM
37-pin D-sub male/male cable, 1M
• ACL-10120-1
20-pin flat cable, 1 M
• ACL-10568-1
SCSI 68P(M) to VHDCI 68P cable, 1M
